Product Display
    • HRMB501D Water-Cooled Welding Torch
Detailed Product Description

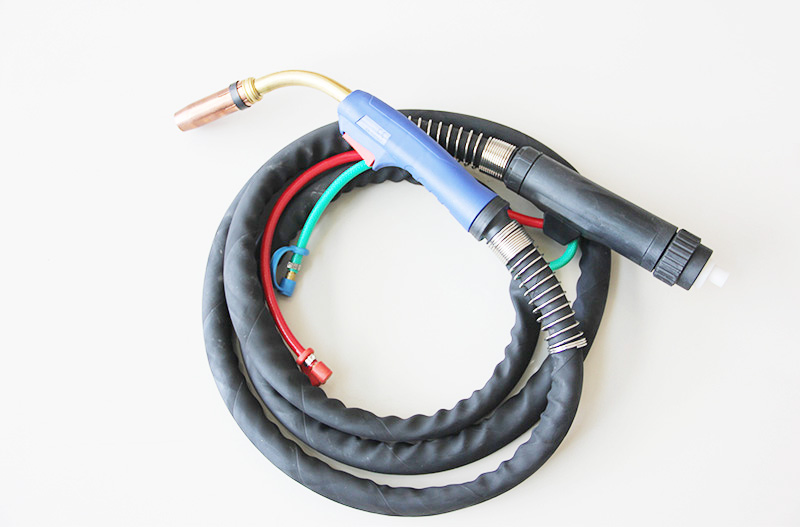

MIG/MAG HRMB501D Water-Cooled CO2/Mixed Shielded Welding Torch

mb501 mig torch

ItemMIG/MAG HRMB501D Water-Cooled CO2/Mixed Shielded Welding Torch
Rating500A CO2/ 450A Mixed Gas, Duty Cycle 60% Wire Diameter: 1.0-2.4mm
Rear ConnectorEuro Connector
CertificationISO9001, CCC, CE, ROHS, TUV
Packing1set/box neutral packing, 5sets/Carton Box

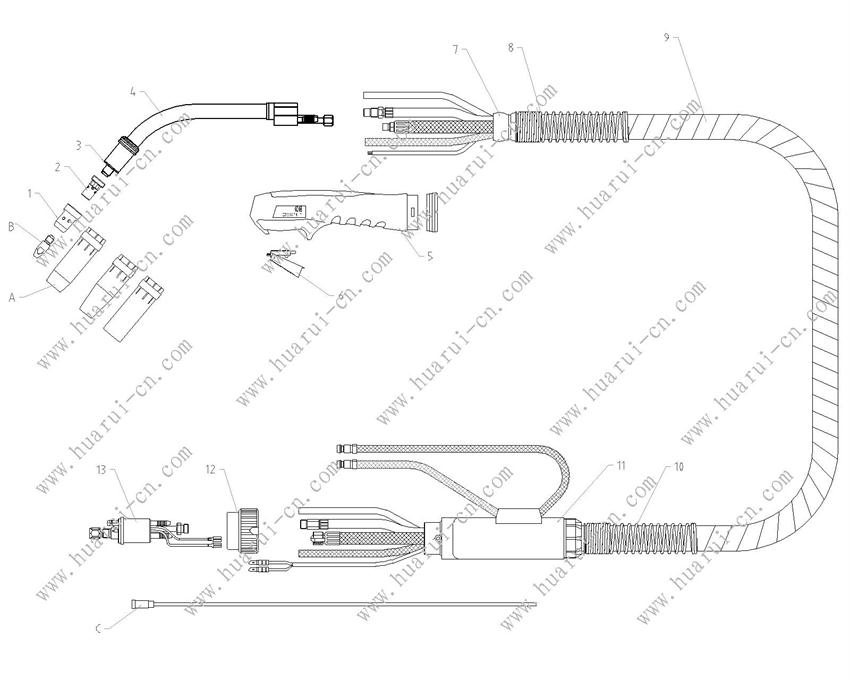

Welding Gas Nozzle/ CO2 Torch Nozzle
A5011 145.0051Nozzle Cylindrical
A5012 145.0085Nozzle Conical
A5013 145.0132Nozzle Tapered
A5014Nozzle Bottle
A5015Nozzle Spot Welding
Welding Contact Tip / Torch Tip
B5011 140.0313Contact Tip E-CU M8*30*1.0mm
B5012 140.0442Contact Tip E-CU M8*30*1.2mm
B5013 140.0587Contact Tip E-CU M8*30*1.6mm
B5014 140.0677Contact Tip E-CU M8*30*2.4mm
Welding Torch Liner
C5011 124.0026Red Steel Liner 1.0-1.2mm, 3m
C5012 124.0031Red Steel Liner 1.0-1.2mm, 4m
C5013 124.0035Red Steel Liner 1.0-1.2mm, 5m
C5014 124.0041Yellow Steel Liner 1.6mm,3m
C5015 124.0042Yellow Steel Liner 1.6mm,4m
C5016 124.0044Yellow Steel Liner 1.6mm,5m
C5017 124.0051Green Steel Liner 2.0-2.4mm,3m
C5018 124.0053Green Steel Liner 2.0-2.4mm,4m
C5019 124.0055Green Steel Liner 2.0-2.4mm,5m
T5011Teflon Liner,3m(Blue 1.5/4.0,Red 2.0/4.0,Yellow 2.7/4.7)
T5012Teflon Liner,4m(Blue 1.5/4.0,Red 2.0/4.0,Yellow 2.7/4.7)
T5013Teflon Liner,5m(Blue 1.5/4.0,Red 2.0/4.0,Yellow 2.7/4.7)
Welding Torch Spare Parts: Gas Diffuser, Tip Holder, Swan Neck
D50102Gas Diffuser
D50101 142.0022Tip Holder
D50103 030.0019Insulator
D50104 034.0001Swan Neck

Note: All mentioned names, Trademarks and Part No. are the property of their respective manufacturers, all consumables are not original, are manufactured and sold by HUARUI CO., reference to the original manufacturer is for convenience only.
