Detailed Product Description

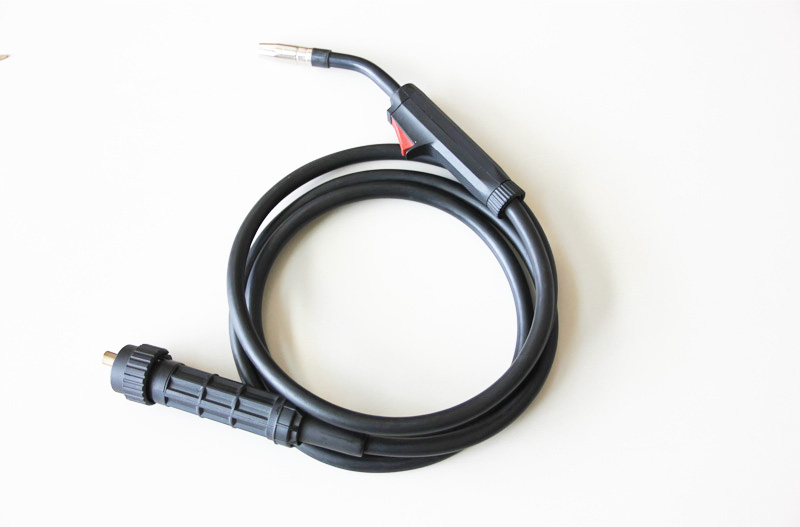

MIG/MAG HRMB23KD Air-Cooled CO2/Mixed Shielded Welding Torch

ItemMIG/MAG HRMB23KD Air-Cooled CO2/Mixed Shielded Welding Torch
Rating200A CO2 /180A Mixed Gas, Duty Cycle 60% Wire Diameter: 0.6-1.0
Rear ConnectorEuro Connector
CertificationISO9001, CCC, CE, ROHS, TUV
Packing1set/box neutral packing, 5sets/Carton Box

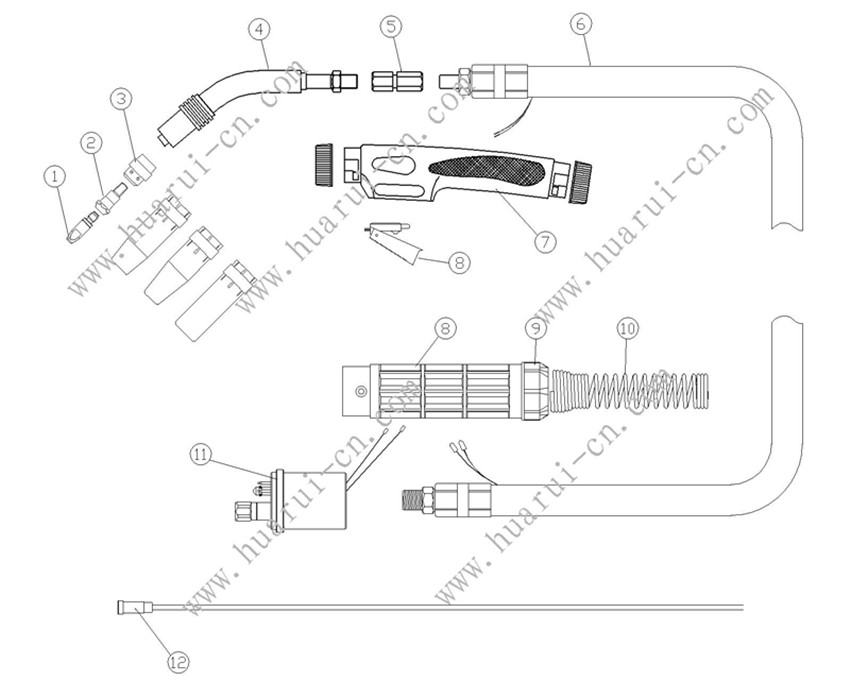

Welding Gas Nozzle/ CO2 Torch Nozzle
A2301 145.0047Nozzle Cylindrical
A2302 145.0080Nozzle Conical
A2303 145.0128Nozzle Tapered
A2305 145.0174Nozzle Spot Welding


Welding Contact Tip / Torch Tip
B2301 140.0005Contact Tip E-CU M6*28*0.6mm
B2302 140.0051Contact Tip E-CU M6*28*0.8mm
B2303 145.0169Contact Tip E-CU M6*28*0.9mm
B2304 140.0242Contact Tip E-CU M6*28*1.0mm
B2305 140.0379Contact Tip E-CU M6*28*1.2mm


Welding Torch Liner
C2301 124.0011Blue Steel Liner 0.6-0.9mm * 3m
C2302 124.0012Blue Steel Liner 0.6-0.9mm * 4m
C2303 124.0015Blue Steel Liner 0.6-0.9mm * 5m
C2304 124.0026Red Steel Liner 1.0-1.2mm, 3m
C2305 124.0031Red Steel Liner 1.0-1.2mm, 4m
C2306 124.0035Red Steel Liner 1.0-1.2mm, 5m
Welding Torch Spare Parts: Tip Holder, Swan Neck
D2301Tip Holder
D2303 005.0003Swan Neck

Note: All mentioned names, Trademarks and Part No. are the property of their respective manufacturers, all consumables are not original, are manufactured and sold by HUARUI CO., reference to the original manufacturer is for convenience only.
