Product Display
    • HR15AK Air-Cooled Welding Torch for Binzel
Detailed Product Description

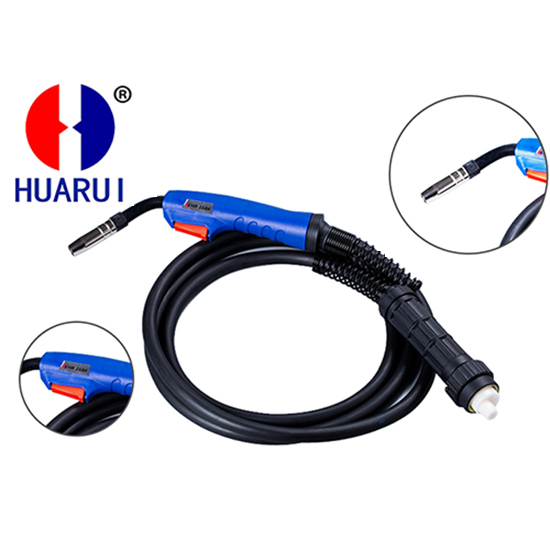

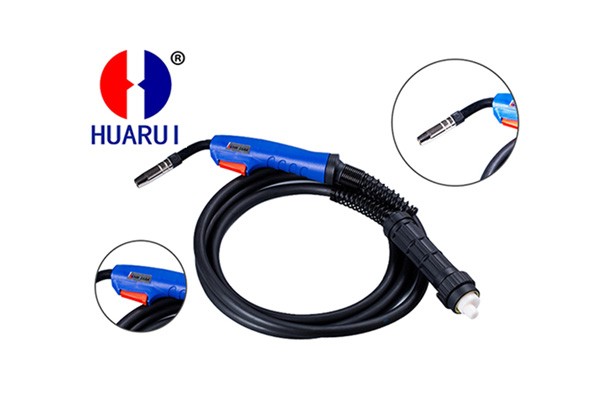

MIG/MAG HRMB15AK Air-Cooled CO2/Mixed Shielded Welding Torch

MIG/MAG HRMB15AK Air-Cooled CO2/Mixed Shielded Welding Torch

ItemMIG/MAG MB15AK Air-Cooled CO2/Mixed Shielded Welding Torch
Rating180A CO2/ 150A Mixed Gas, Duty Cycle 60% Wire Diameter: 0.6-1.0mm
Rear ConnectorEuro Connector
CertificationISO9001, CCC, CE, ROHS, TUV
Packing1set/box neutral packing, 5sets/Carton Box

Welding Gas Nozzle/ CO2 Torch Nozzle
A1501 145.0041Nozzle Cylindrical
A1502 145.0075Nozzle Conical
A1503 145.0123Nozzle Tapered
A1504Nozzle Bottle
A1505 145.0168Nozzle Spot Welding
Welding Contact Tip / Torch Tip
B1501 140.0008Contact Tip E-CU M6*25*0.6mm
B1502 140.0059Contact Tip E-CU M6*25*0.8mm
B1503 140.0177Contact Tip E-CU M6*25*0.9mm
B1504 140.0253Contact Tip E-CU M6*25*1.0mm
Welding Torch Liner
C1501 124.0011Blue Steel Liner 0.6-0.9mm * 3m
C1502 124.0012Blue Steel Liner 0.6-0.9mm * 4m
C1503 124.0015Blue Steel Liner 0.6-0.9mm * 5m
C1504 124.0026Red Steel Liner 1.0-1.2mm, 3m
C1505 124.0031Red Steel Liner 1.0-1.2mm, 4m
C1506 124.0035Red Steel Liner 1.0-1.2mm, 5m

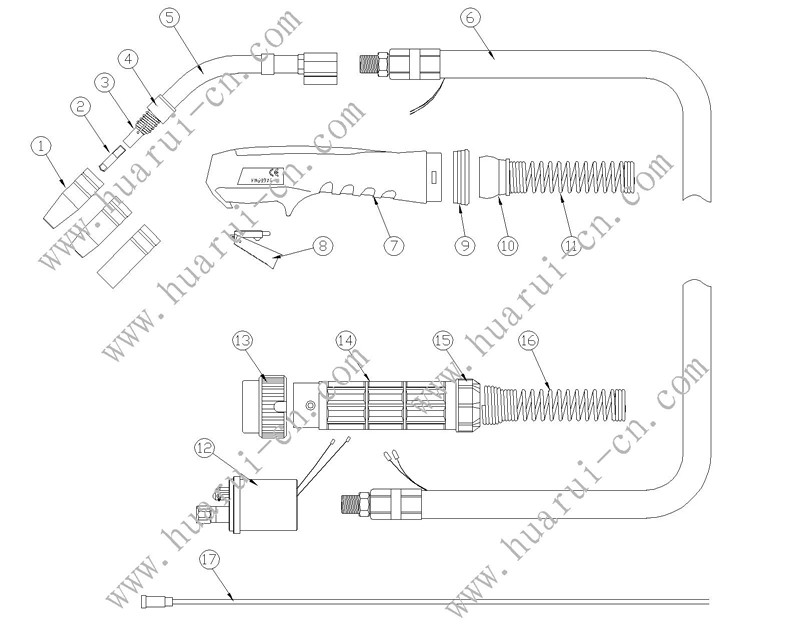

Welding Torch Spare Parts: Gas Diffuser, Tip Holder, Swan Neck
D1501 002.0078L/H Tip Holder
D1502 002.0058Spring Support
D1503 002.0050Insulator
D1504 002.0017Swan Neck

Note: All mentioned names, Trademarks and Part No. are the property of their respective manufacturers, all consumables are not original, are manufactured and sold by HUARUI CO., reference to the original manufacturer is for convenience only


.
