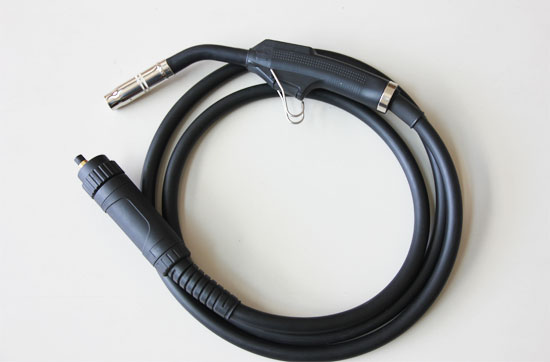

Email Us:MIG/MAG HRES315 Air-Cooled CO2/Mixed Shielded Welding Torch
| Item | MIG/MAG HRES315 Air-Cooled CO2/Mixed Shielded Welding Torch |
| Rating | 315A CO2/ 285A Mixed Gas, Duty Cycle 60% Wire Diameter: 0.6-1.2mm |
| Rear Connector | Esab Connector, Esab Euro Connector |
| Certification | ISO9001, CCC, CE, ROHS, TUV |
| Packing | 1set/box neutral packing, 5sets/Carton Box |
| Welding Gas Nozzle/ CO2 torch nozzle | |
| A366-854-882 | Nozzle ￠16mm |
| A366-946-882 | Nozzle ￠13mm |
| Welding Contact tip / Torch tip | |
| B468-500-001 | Contact Tip E-CU M6*27*0.6mm |
| B468-500-003 | Contact Tip E-CU M6*27*0.8mm |
| B468-500-004 | Contact Tip E-CU M6*27*0.9mm |
| B468-500-005 | Contact Tip E-CU M6*27*1.0mm |
| B468-500-006 | Contact Tip E-CU M6*27*1.2mm |
| B468-500-008 | Contact Tip E-CU M6*27*1.4mm |
| Welding Torch Liner | |
| C366-549-882-B | Steel Liner 0.6-0.8mm, 3m |
| C366-549-883-B | Steel Liner 0.6-0.8mm, 4.5m |
| C366-549-884 Steel | Liner 0.9-1.0mm,3m |
| C366-549-885 Steel | Liner 0.9-1.0mm,4.5m |
| C366-549-886 Steel | Liner 1.2mm,3m |
| C366-549-887 Steel | Liner 1.2mm,4.5m |

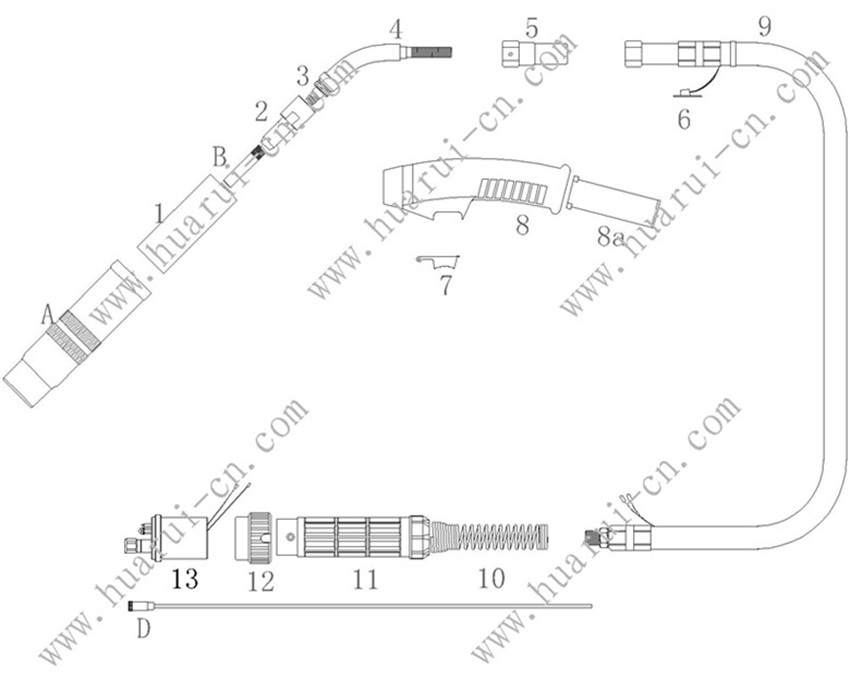

| Welding Torch Spare parts: Gas Diffuser, Tip holder, Swan neck | |
| D366-396-003 | Nozzle Insulator |
| D366-394-001 | Gas Diffuser |
| D366-397-002 | Diffuser Insulation |
| D366-388-800 | Swan Neck |
Note: All mentioned names, Trademarks and Part No. are the property of their respective manufacturers, all consumables are not original, are manufactured and sold by HUARUI CO., reference to the original manufacturer is for convenience only.
