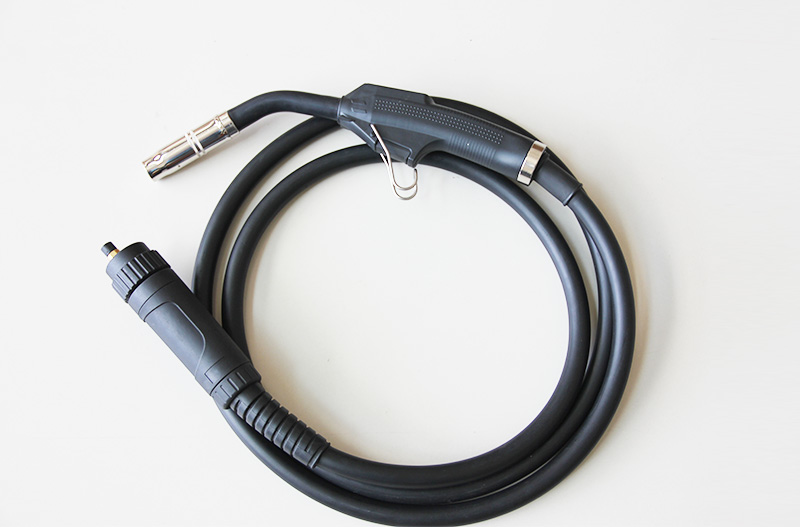

Email Us:MIG/MAG HRES500 Air-Cooled CO2/Mixed Shielded Welding Torch
| Item | MIG/MAG HRES500 Air-Cooled CO2/Mixed Shielded Welding Torch |
| Rating | 500A CO2/ 400A Mixed Gas, Duty Cycle 60% Wire Diameter: 1.0-1.6mm |
| Rear Connector | Esab Connector, Esab Euro Connector |
| Certification | ISO9001, CCC, CE, ROHS, TUV |
| Packing | 1set/box neutral packing, 5sets/Carton Box |
| Welding Gas Nozzle/ CO2 torch nozzle | |
| A366-854-884 | Nozzle Tapered ￠18mm |
| Welding Contact tip / Torch tip | |
| B153-502-001 | Contact Tip E-CU M8*40*0.9mm |
| B153-502-002 | Contact Tip E-CU M8*40*1.0mm |
| B153-502-003 | Contact Tip E-CU M8*40*1.2mm |
| B153-502-004 | Contact Tip E-CU M8*40*1.4mm |
| B153-502-005 | Contact Tip E-CU M8*40*1.6mm |
| B153-502-006 | Contact Tip E-CU M8*40*2.0mm |
| Welding Torch Liner | |
| C366-549-884-B | Steel Liner 0.9-1.0mm, 3m |
| C366-549-885-B | Steel Liner 0.9-1.0mm, 4.5m |
| C366-549-886-B | Steel Liner 1.2mm, 3m |
| C366-549-887-B | Steel Liner 1.2mm, 4.5m |
| C366-549-890-B | Steel Liner 1.6mm, 3m |
| C366-549-891-B | Steel Liner 1.6mm, 4.5m |
| Welding Torch Spare parts: Gas Diffuser, Tip holder, Swan neck | |
| D366-396-005 | Nozzle Insulator |
| D366-395-001 | Gas Diffuser |
| D366-397-003 | Diffuser Insulation |
| D366-390-880 | Swan Neck |
Note: All mentioned names, Trademarks and Part No. are the property of their respective manufacturers, all consumables are not original, are manufactured and sold by HUARUI CO., reference to the original manufacturer is for convenience only.
