Product Display
    • S75 Plasma Cutting Torch
    • S75 Plasma Cutting Torch
Detailed Product Description

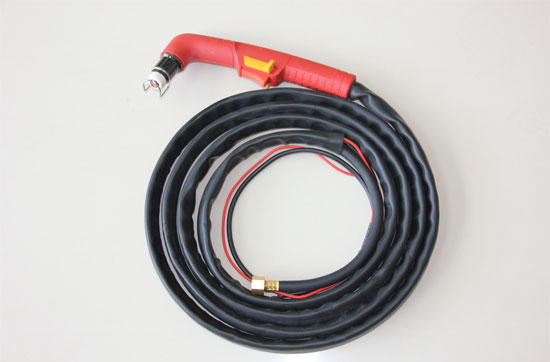

Plasma Cutting Torch S75 Compatible for Trafimet

ItemPlasma Cutting Torch S75 Compatible for Trafimet
Rating70A @60% Duty Cycle,MAX Cutting Capacity: 23mm Air Pressure: 0.5MPa
Rear ConnectorCentral Connector, 3/8'' BSP
CertificationISO9001, CCC, CE, ROHS, TUV
Packing1set/box neutral packing, 5sets/Carton Box

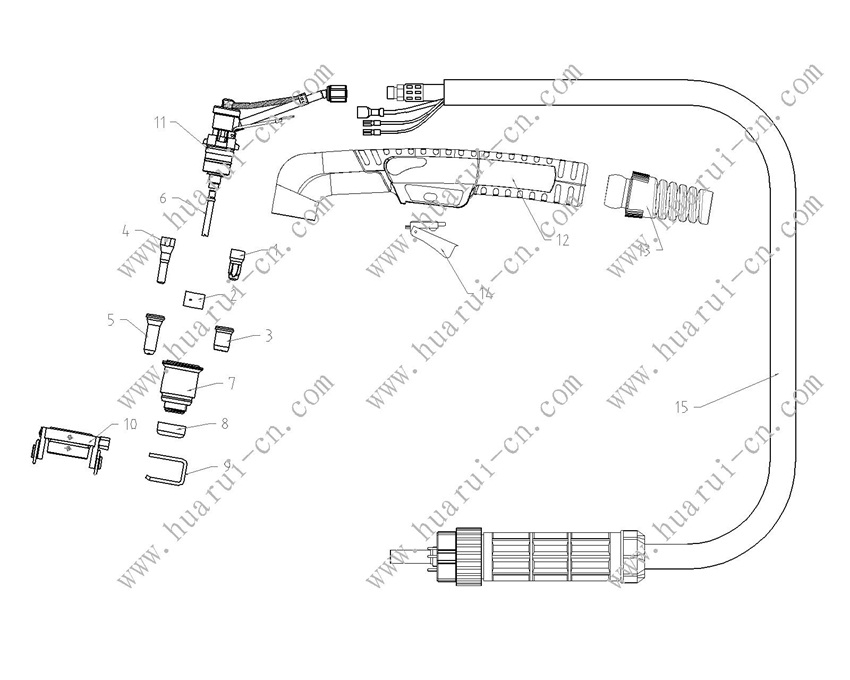

Plasma Cutting Spare Parts: Torch head, Tip, Electrode, Swirl Ring, Gas Diffuser, Nozzle Rtaining Cap
1. PF0135Torch Head --Hand
2. FH0647Diffuser
3. PR0117Electrode,hafnium
4. PE0112Swirl Ring
5. PD0114-10Tip, 1.0mm
PD0114-12Tip, 1.2mm
6. PC0114Nozzle Retaining Cap
7. CV0076Ceramic Cup
8. CV0028Stand off Spring
9. TP0110Handle c/w Switch

Note: All mentioned names, Trademarks and Part No. are the property of their respective manufacturers, all consumables are not original, are manufactured and sold by HUARUI CO., reference to the original manufacturer is for convenience only.
