    • S45 Plasma Cutting Torch
Detailed Product Description

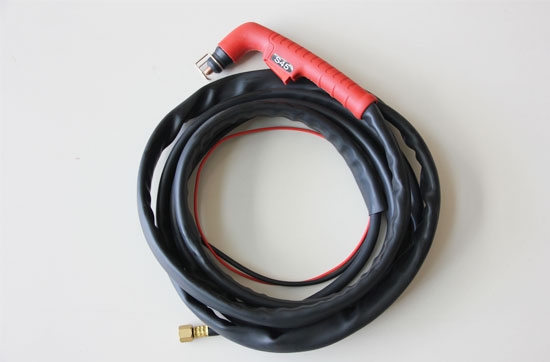

Plasma Cutting Torch S45 Compatible for Trafimet

ItemPlasma Cutting Torch S45 Compatible for Trafimet
Rating40 Amps @ 60 Duty Cycle Cutting Capacity: 10mm Max(most materials) Gas: Single Air Flow: 90 litres per minute
Rear ConnectorCentral Connector, 3/8'' BSP
CertificationISO9001, CCC, CE, ROHS, TUV
Packing1set/box neutral packing, 5sets/Carton Box

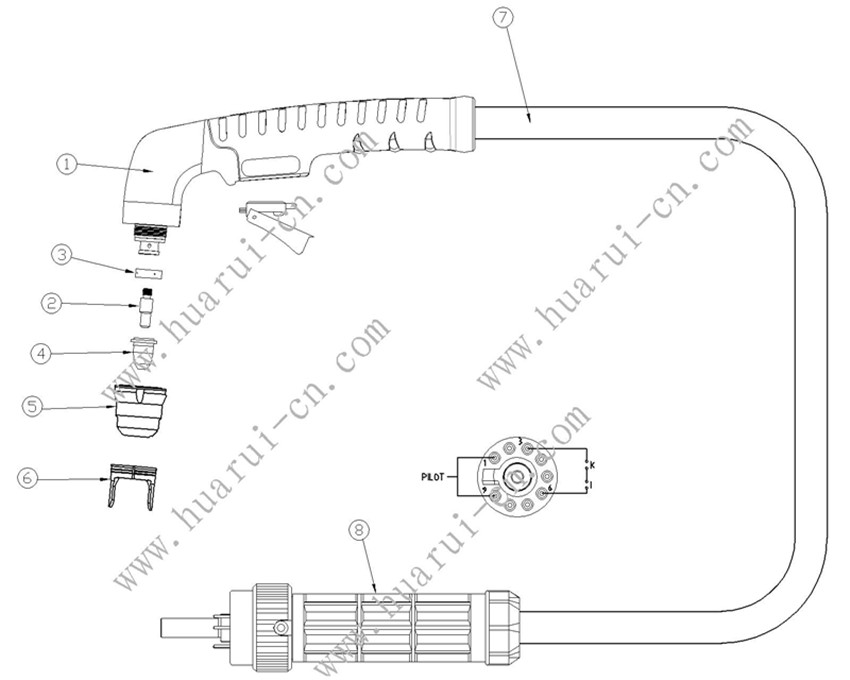

Plasma Cutting Spare Parts: Torch head, Tip, Electrode, Swirl Ring, Gas Diffuser, Nozzle Rtaining Cap
1Torch Head - S25/S25K

Torch Head - S45
2. PE0106Swing Ring
3. PR0105Electrode,Hafnium
4. PD0102-09Tip 0.9mm
PD0102-10Tip 1.0mm
5. PR0110Electrode,Hafnium
6. PD0116-06Tip 0.65mm - S25K - GYS 20k
PD0116-08Tip 0.8mm - S25K - GYS 20
PD0116-09Tip 0.9mm - S25K - GYS 20
7. PR0106Extended Electrode,hafnium
8. PD0103-65Extended Tip 0.65mm-S25K
PD0103-09Extended Tip 0.9mm-S25
PD0103-10Extended Tip 1.0mm-S45
9. PC0116Nozzle Retaining Cap S45
PC0122Nozzle Retaining Cap S25K (1 Hole)
PC0117Nozzle Ret. Cap S25K (2 Hole) -GYS 20K
PC0135Nozzle Ret. Cap S35K (4 Hole) -GYS 20

Note: All mentioned names, Trademarks and Part No. are the property of their respective manufacturers, all consumables are not original, are manufactured and sold by HUARUI CO., reference to the original manufacturer is for convenience only.
