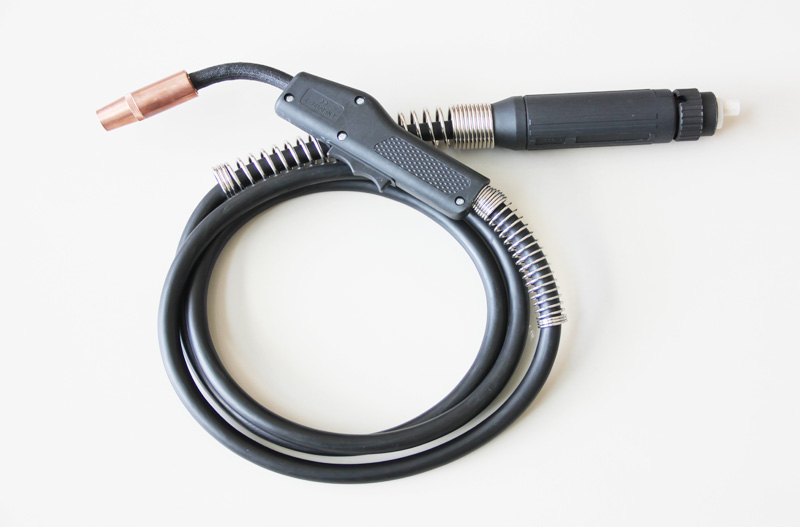

Email Us:MIG/MAG HRTW-4 Air-Cooled CO2/Mixed Shielded Welding Torch
| Item | MIG/MAG HRTW-4 Air-Cooled CO2/Mixed Shielded Welding Torch |
| Rating | 400A CO2/ 350A Mixed Gas , Duty Cycle 60%; Wire Diameter: 0.8-1.6mm |
| Rear Connector | Tweco Connector, Euro Connector, Miller Connector, Lincoln Connector |
| Certification | ISO9001, CCC, CE, ROHS, TUV |
| Packing | 1set/box neutral packing, 5sets/Carton Box |
| Welding Gas Nozzle/ CO2 Torch Nozzle | |
| HRTW24CT-37-S | Nozzle Tapered ￠9.5mm |
| HRTW24CT-50-S | Nozzle Conical ￠12.7mm |
| HRTW24CT-62-S | Nozzle Conical ￠15.9mm |
| HRTW24CT-75-S | Nozzle Cylindrical ￠19.1mm |
| Welding Contact Tip / Torch Tip | |
| 14-30 | Contact Tip 1/4''-28UNF*38*0.8mm |
| 14-35 | Contact Tip 1/4''-28UNF*38*0.9mm |
| 14-40 | Contact Tip 1/4''-28UNF*38*1.0mm |
| 14-45 | Contact Tip 1/4''-28UNF*38*1.2mm |
| 14-52 | Contact Tip 1/4''-28UNF*38*1.3mm |
| 14-116 | Contact Tip 1/4''-28UNF*38*1.6mm |
| Welding Torch Liner | |
| 44-3545-10 | Black Steel Liner 0.9-1.2mm,3.4m |
| 44-3545-15 | Black Steel Liner 0.9-1.2mm,4.9m |
| 44-116-10 | Black Steel Liner 1.6mm,3.4m |
| 44-116-15 | Black Steel Liner 1.6mm,4.9m |
| 44-564-10 | Black Steel Liner 2.0mm,3.4m |
| 44-564-15 | Black Steel Liner 2.0mm,4.9m |

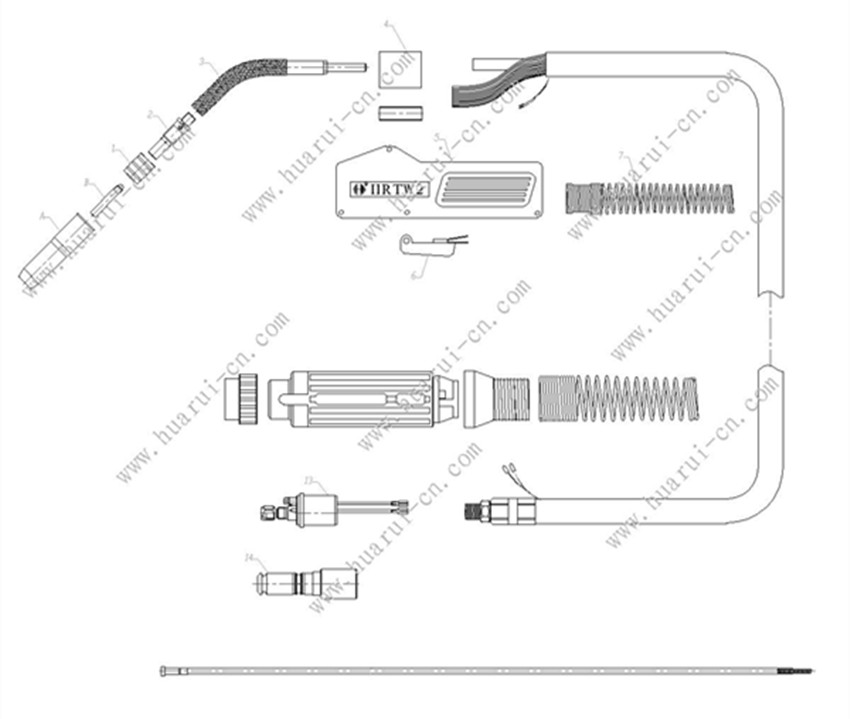

| Welding Torch Spare Parts: Gas Diffuser, Tip Holder, Swan Neck, Switch, Connection Block | |
| 34CT | Nozzle Insulated |
| 54A | Gas Diffuser |
| 64A-45/60 | Swan Neck |
| 104 | Connection Block |
| 84A | Front Handle |
| 94R | Switch |
Note: All mentioned names, Trademarks and Part No. are the property of their respective manufacturers, all consumables are not original, are manufactured and sold by HUARUI CO., reference to the original manufacturer is for convenience only.
