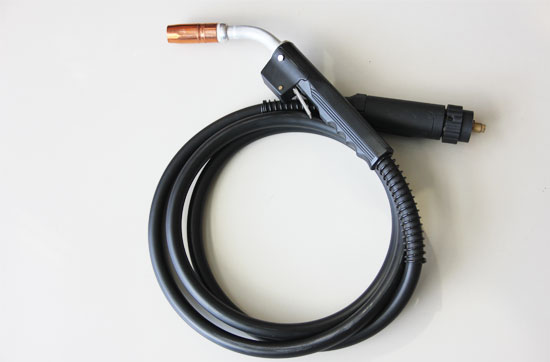

Email Us:MIG/MAG HRTR350A/450A/550A Air-Cooled CO2/Mixed Shielded Welding Torch
| Item | MIG/MAG HRTR Series Air-Cooled CO2/Mixed Shielded Welding Torch |
| Rating | 350A,450A,550A Mixed Gas, Duty Cycle 60%; Wire Diameter: 0.6-1.6mm |
| Rear Connector | Tregaskiss Euro Connector |
| Certification | ISO9001, CCC, CE, ROHS, TUV |
| Packing | 1set/box neutral packing, 5sets/Carton Box |
| Welding Gas Nozzle/ CO2 torch nozzle | |
| Standard Nozzle | |
| 401-40-38 | Tapered Nozzle-Bore 10mm(Brass) |
| 401-4-38 | 10mm Bore |
| 401-4-50 | 13mm Bore |
| 401-4-62 | 15mm Bore |
| 401-4-75 | 19mm Bore |
| Heavy-Duty Nozzle | |
| 401-5-62 | 13mm Bore |
| 401-5-75 | 15mm Bore |
| 401-6-50 | 13mm Bore |
| 401-6-62 | 15mm Bore |
| 401-6-75 | 19mm Bore |
| 401-7-62 | 16mm Bore, Brass |
| 401-7-87 | 22mm Bore, Brass |
| Welding Contact tip / Torch tip | |
| 403-XX | OD6.3*34 For 0.6-1.6 Wire |
| 403-2-XX | OD6.3*34 For 0.6-1.6 Wire,Tapered |
| 403-1-XX | OD8*34 For 0.6-1.6 Wire |
| 403-3-XX | OD8*34 For 0.6-1.6 Wire,Tapered |
| Welding Torch Liner | |
| 415-35 | Steel Liner |
| 415-116 | Steel Liner |
| Welding Torch Spare parts: Gas Diffuser, Tip holder, Swan neck | |
| 404 | Standard Gas Diffuser |
| 404-1 | Heavy Duty Gas Diffuser |
| 402-3 | Nozzle Retainer |
| 402-5 | Heavy Duty Shock Washer |
| 405-22/505-22 | 22° Degree |
| 305-45/405-45/505-45 | 45° Degree |
| 305-60/405-60/505-60 | 60° Degree |
Note: All mentioned names, Trademarks and Part No. are the property of their respective manufacturers, all consumables are not original, are manufactured and sold by HUARUI CO., reference to the original manufacturer is for convenience only.
