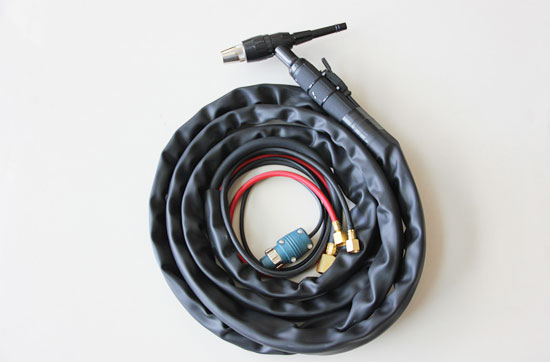

Email Us:TIG HR-50W Water Cooled Tungsten Argon Arc Welding Torch
| Item | TIG HR-50W Water Cooled Tungsten Argon Arc Welding Torch |
| Rating | 500A DC, 100％ Duty Cycle, Tungsten Diameter: 1.6-6.4mm |
| Rear Connector | 9/16''-18UNF, 7/8''-14UNF, 5/8''-18UNF |
| Certification | ISO9001, CCC, CE, ROHS, TUV |
| Packing | 1set/box neutral packing, 5sets/Carton Box |
| CONSUMABLES PARTS | |
| 1. HR-50W01 | Torch body |
| 2. HR-50W02 | Back Cap |
| 3. HR-50W03 | Connector for water jacket |
| 4. HR-50W04-1.0 | Collet 1.0mm |
| HR-50W04-1.6 | Collet 1.6mm |
| HR-50W04-2.4 | Collet 2.4mm |
| HR-50W04-3.2 | Collet 3.2mm |
| HR-50W04-4.0 | Collet 4.0mm |
| 5. HR-50W05 | Collet Body |
| 6. HR-50W06 | O-Ring |
| 7. HR-50W07 | Water jacket |
| 8. HR-50W08 | Insulator sleeve |
| 9. HR-50W09-9.5 | Metal nozzle, 6#, 9.5mm |
| HR-50W09-13.7 | Metal nozzle, 8#, 13.7mm |
| HR-50W09-16.0 | Metal nozzle, 10#, 16mm |
| 10. HR50W10 | Micro Switch |
| 11. HR50W11 | Handle for HR50W |
| 12. HR50W12 | Gas Hose |
| 13. HR50W13 | Power Cable |
| 14. HR50W14 | Water Hose |
| 15. HR50W15 | Protective Neoprene Cover |
Note: All mentioned names, Trademarks and Part No. are the property of their respective manufacturers, all consumables are not original, are manufactured and sold by HUARUI CO., reference to the original manufacturer is for convenience only.
