Detailed Product Description

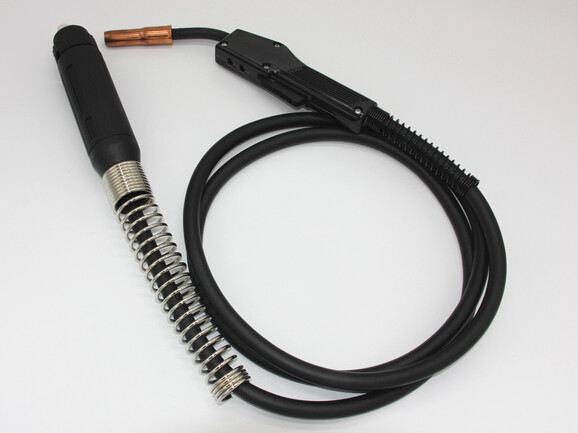

MIG/MAG HRTW-2 Air-Cooled CO2/Mixed Shielded Welding Torch

ItemMIG/MAG HRTW-2 Air-Cooled CO2/Mixed Shielded Welding Torch
Rating200A CO2/ 150A Mixed Gas , Duty Cycle 60%; Wire Diameter: 0.6-1.2mm
Rear ConnectorTweco Connector, Euro Connector, Miller Connector, Lincoln Connector
CertificationISO9001, CCC, CE, ROHS, TUV
Packing1set/box neutral packing, 5sets/Carton Box


Welding Gas Nozzle/ CO2 Torch Nozzle
22-37-SSNozzle Tapered 9.5mm
22-50-SSNozzle Conical 12.7mm
22-62-SSNozzle Conical 15.9mm
Welding Contact Tip / Torch Tip
14-23Contact Tip 1/4''-28UNF*0.6mm
14-30Contact Tip 1/4''-28UNF*0.8mm
14-35Contact Tip 1/4''-28UNF*0.9mm
14-40Contact Tip 1/4''-28UNF*1.0mm
14-45Contact Tip 1/4''-28UNF*1.2mm
14-52Contact Tip 1/4''-28UNF*1.3mm
14-116Contact Tip 1/4''-28UNF*1.6mm
Welding Torch Liner
42-23-15Black Steel Liner 0.6mm,4.9m
42-3035-15Black Steel Liner 0.8-0.9mm,4.9m
42-3545-15Black Steel Liner 0.9-1.2mm,4.9m
42-4045-15Black Steel Liner 1.0-1.2mm,4.9m
42-3045-25Black Steel Liner 0.8-0.9mm,7.9m
42-4045-25Black Steel Liner 1.0-1.2mm,7.9m
Welding Torch Spare Parts: Gas Diffuser, Tip Holder, Swan Neck, Switch, Connection Block
32Insulated
52Gas Diffuser
62A-45/60Swan Neck
102Connection Block
82Front Handle
92CSwitch
Note: All mentioned names, Trademarks and Part No. are the property of their respective manufacturers, all consumables are not original, are manufactured and sold by HUARUI CO., reference to the original manufacturer is for convenience only.
