    • HRES500 Air-Cooled CO2
Detailed Product Description

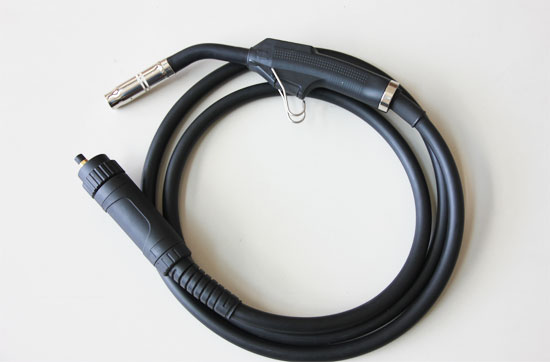

MIG/MAG HRES500 Air-Cooled CO2/Mixed Shielded Welding Torch

ItemMIG/MAG HRES500 Air-Cooled CO2/Mixed Shielded Welding Torch
Rating500A CO2/ 400A Mixed Gas, Duty Cycle 60% Wire Diameter: 1.0-1.6mm
Rear ConnectorEsab Connector, Esab Euro Connector
CertificationISO9001, CCC, CE, ROHS, TUV
Packing1set/box neutral packing, 5sets/Carton Box


Welding Gas Nozzle/ CO2 torch nozzle
A366-854-884Nozzle Tapered 18mm


Welding Contact tip / Torch tip
B153-502-001Contact Tip E-CU M8*40*0.9mm
B153-502-002Contact Tip E-CU M8*40*1.0mm
B153-502-003Contact Tip E-CU M8*40*1.2mm
B153-502-004Contact Tip E-CU M8*40*1.4mm
B153-502-005Contact Tip E-CU M8*40*1.6mm
B153-502-006Contact Tip E-CU M8*40*2.0mm


Welding Torch Liner
C366-549-884-BSteel Liner 0.9-1.0mm, 3m
C366-549-885-BSteel Liner 0.9-1.0mm, 4.5m
C366-549-886-BSteel Liner 1.2mm, 3m
C366-549-887-BSteel Liner 1.2mm, 4.5m
C366-549-890-BSteel Liner 1.6mm, 3m
C366-549-891-BSteel Liner 1.6mm, 4.5m

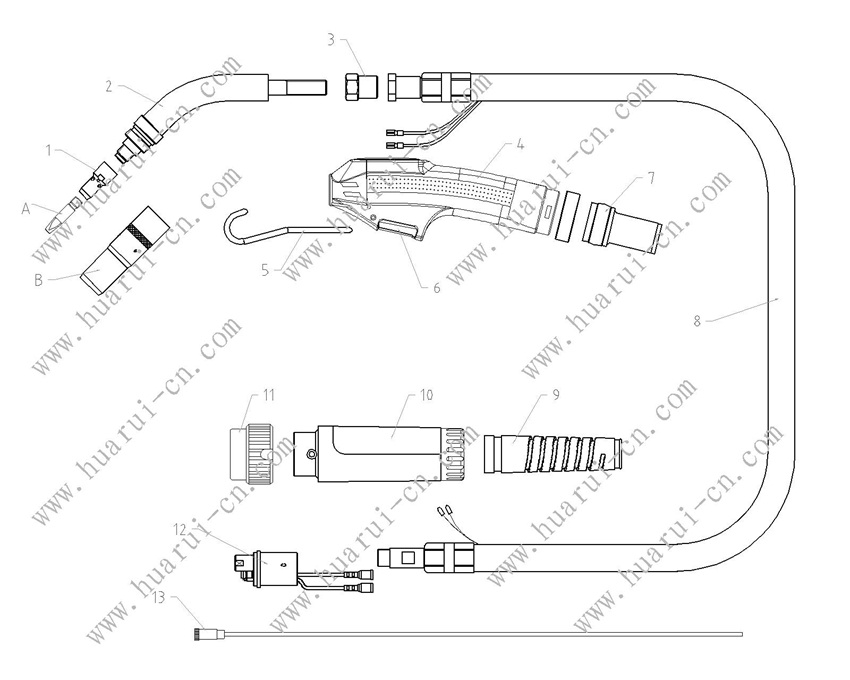

Welding Torch Spare parts: Gas Diffuser, Tip holder, Swan neck
D366-396-005Nozzle Insulator
D366-395-001Gas Diffuser
D366-397-003Diffuser Insulation
D366-390-880Swan Neck

Note: All mentioned names, Trademarks and Part No. are the property of their respective manufacturers, all consumables are not original, are manufactured and sold by HUARUI CO., reference to the original manufacturer is for convenience only.
