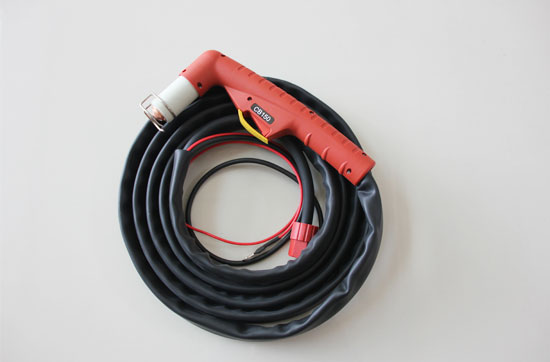

Email Us:Plasma Cutting Torch CB150/160 Compatible for Cebora
| Item | Plasma Cutting Torch CB150/160 Compatible for Cebora |
| Rating | 150 Amps @ 60％ Duty Cycle Cutting Capacity: 35mm Max(most materials) Gas: Single Air Flow: 220 litres per minute |
| Rear Connector | Central Connector, 1/8 BSP |
| Certification | ISO9001, CCC, CE, ROHS, TUV |
| Packing | 1set/box neutral packing, 5sets/Carton Box |

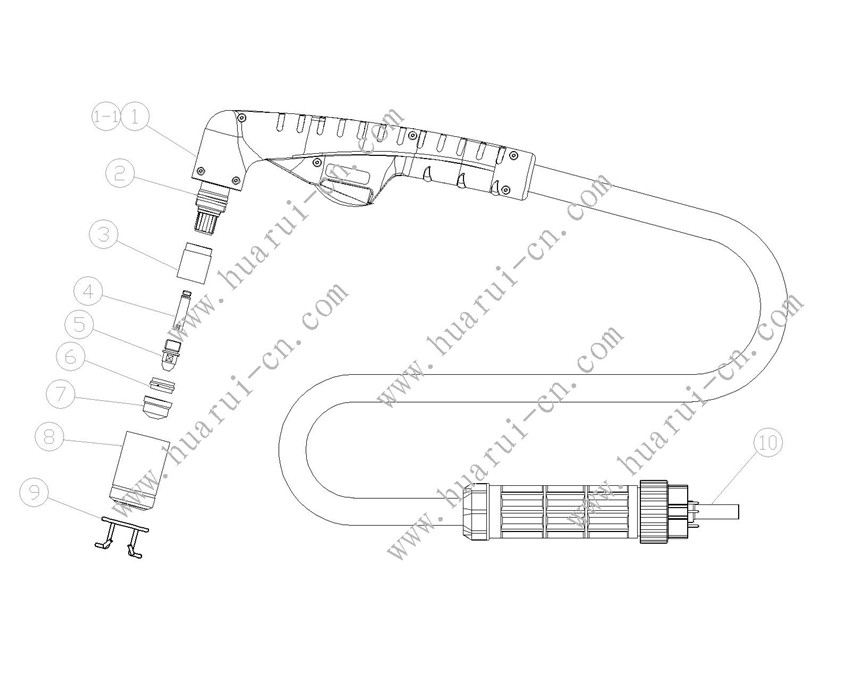

| Plasma Cutting Spare Parts: Torch head, Tip, Electrode, Swirl Ring, Gas Diffuser, Nozzle Rtaining Cap | |
| 1. C1353 | Torch Head -Hand |
| 2. C1354 | Torch Head - Machine |
| 3. C1398 | O-Ring - Torch Head |
| 4. C1378 | Diffuser |
| 5 | Front Insulator - Vespel |
| 6. C1376 | Electrode Hafnium |
| 7. C1377 | Swing Ring - Vespel |
| 8. C1371 | Cutting Tip 1.1mm |
| C1372 | Cutting Tip 1.35mm |
| C1373 | Cutting Tip 1.6mm |
| C1374 | Cutting Tip 1.8mm |
| C1375 | Cutting Tip 3.0mm |
| 9. C1389 | Nozzle Retaining Cap |
| 10. C1390 | Contact Cutting Tip 1.35mm |
| C1391 | Contact Cutting Tip 1.6mm |
| C1392 | Contact Cutting Tip 1.8mm |
| 11 | Extended Diffuser |
| 12. C1517 | Extended Electrode,hafnium |
| 13. C1369 | Extended Contact Cutting Tip - Max 50 Amp |
| 14 | Extended Tip 1.35mm - 90 Amp |
| Extended Tip 1.6mm - 120 Amp | |
| Extended Tip 1.8mm - 150 Amp | |
| 15. C1393 | Contact Nozzle Retaining Cap |
Note: All mentioned names, Trademarks and Part No. are the property of their respective manufacturers, all consumables are not original, are manufactured and sold by HUARUI CO., reference to the original manufacturer is for convenience only.
