Home > Product Display > PLASMA Cutting Torch > Compatible for Trafimet® Cutting Torch
classification
Product Display
    • A141 Plasma Cutting Torch
Detailed Product Description

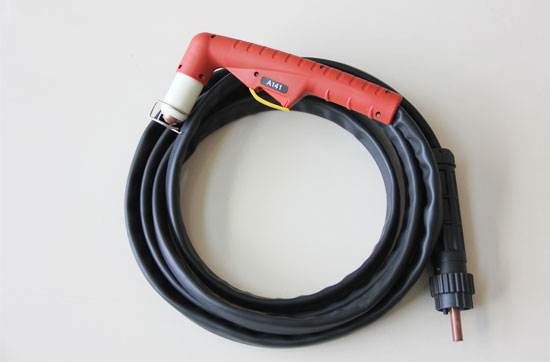

Plasma Cutting Torch A141 Compatible for Trafimet

ItemPlasma Cutting Torch A141 Compatible for Trafimet
Rating

140 Amps @ 60 Duty Cycle Cutting Capacity: 35mm Max(most materials)

Gas: Single Air Flow: 210 litres per minute

Rear ConnectorCentral Connector, 3/8'' G
CertificationISO9001, CCC, CE, ROHS, TUV
Packing1set/box neutral packing, 5sets/Carton Box

Plasma Cutting Spare Parts: Torch head, Tip, Electrode, Swirl Ring, Gas Diffuser, Nozzle Rtaining Cap
1. PF0155Torch Head -Hand
2. PF0102Torch Head - Machine
3. EA0131O-Ring - Torch Head
4. FH563Diffuser
5. P1502Extended Diffuser
6. PR0101Electrode Harfnium
7. PR116Extended Electrode
8. PE0101Swirl Ring
9. PE0103Swirl Ring for Extended Electrode
10. PD0101-11Tip 1.1mm
PD0101-14Tip 1.4mm
PD0101-17Tip 1.7mm
PD0101-19Tip 1.9mm
PD0101-30Gouging Tip 3.0mm
11. PD111-12Extended Tip Max 50 Amp, 1.2mm
12. PD117-14Extended Tip 1.4mm Max 90 Amp
PD117-17Extended Tip 1.7mm Max 120 Amp
PD117-19Extended Tip 1.9mm Max 150 Amp
13. PC0101Nozzle Retaining Cap
PC0102Nozzle Retaining Cap - Long Life
14. PC0103Contact Nozzle Retaining Cap
PC0131Contact Nozzle Ret. Cap - Long Life

Note: All mentioned names, Trademarks and Part No. are the property of their respective manufacturers, all consumables are not original, are manufactured and sold by HUARUI CO., reference to the original manufacturer is for convenience only.
