Product Display
    • WP-17-1-Gas-Cooled-Argon-Arc-Welding-Torch
Detailed Product Description

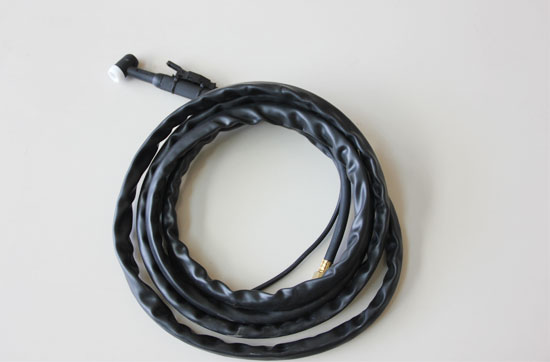

TIG WP-17-1 Gas Cooled Tungsten Argon Arc Welding Torch

ItemTIG WP-17 Gas Cooled Tungsten Argon Arc Welding Torch
WP17-12-1/WP17-25-1, with one cable, 12ft/25ft, as photo
Rating150A DC, 120A AC, Tungsten Diameter: 0.5-2.4mm
Rear ConnectorM12*1, 10-25 connector, 3/8''-24 UNF RH, 5/8'' UNF RH
CertificationISO9001, CCC, CE, ROHS, TUV
Packing1set/box neutral packing, 5sets/Carton Box

Collet
10N21Collet Dia.0.5mm
10N22Collet Dia.1.0mm
10N23Collet Dia.1.6mm
10N23MCollet Dia.2.0mm
10N24Collet Dia.2.4mm
Collet Body
10N29Collet Body Dia. 0.5mm
10N30Collet Body Dia. 1.0mm
10N31Collet Body Dia. 1.6mm
10N32Collet Body Dia. 2.4mm
Alumina nozzle/ Ceramic Nozzle
10N50Std. Ceramic Cup Dia. 6mm
10N49Std. Ceramic Cup Dia. 8mm
10N48Std. Ceramic Cup Dia. 10mm
10N47Std. Ceramic Cup Dia. 11mm
10N46Std. Ceramic Cup Dia. 13mm
10N45Std. Ceramic Cup Dia. 16mm
10N44Std. Ceramic Cup Dia. 19mm
Gas Lens Collet Body
45V29Gas Lens Body Dia. 0.5mm
45V24Gas Lens Body Dia. 1.0mm
45V25Gas Lens Body Dia. 1.6mm
45V26Gas Lens Body Dia. 2.4mm
CONSUMABLES PARTS
18CGHeat Shield Cup Gasket
18CG20Heat Shield Cup Gasket
54N01Heat Shield Cup Gasket
54N63Heat Shield Cup Gasket(Large Dia Gas Lens)
WP17Torch body(With Gasket)
98W18Back Cap " O " Ring
57Y02Back Cap Long
57Y04Back Cap Short
950Micro Switch Bulbous Button
950FMicro Switch Flat Button
950-40Bulbous Micro switch C/W 4mt 2 Core Cable
950-80Bulbous Micro switch C/W 8mt 2 Core Cable
RDZ0591Switch Boot
607664Switch Retaining Boot
105Z55Handle
315071Insulation Boot
VS-2Valve Stem
WP-17VTorch Body With Valve
WP-17FXFlexible Torch Body
WP-17VFXFlexible Torch Body With Valve
Note: All mentioned names, Trademarks and Part No. are the property of their respective manufacturers, all consumables are not original, are manufactured and sold by HUARUI CO., reference to the original manufacturer is for convenience only.
